Loaded U-Cup

LOADED U-CUP

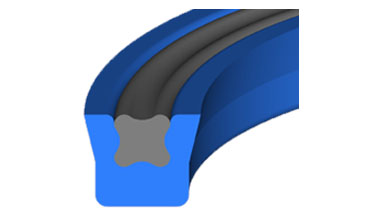

The Loaded U-Cup is a single direction piston seal, meaning it can only seal if the pressure is coming from one direction.  Since the sealing method is single directional, two loaded U-Cups must be installed for dual direction hydraulic piston applications.

The lip designed is a straight lip design, so the Loaded U-Cup has good sealability but also proves to be excellent at contamination removal away from the sealing lip.  Overall, the shape of the Loaded U-Cup is a large rectangle that greatly adds to the stability of the seal.  Also like most polyurethane seals, the Loaded U-Cup features a four-lobed ring energizer, which is designed to activate the seal at lower pressures.

Applications: Mobile hydraulic; agricultural; general industrial; high duty cycle

Materials: Urethane or Hytrel® shell with Nitrile or Viton™ expander

Max Pressure: 6,000 psi

Temperature range: -50°F to +250°F

Max Velocity: 3.2 ft/sec.
