Premium Loaded U-Cup

PREMIUM LOADED U-CUP

Premium loaded U-Cups use two integrated seals to provide more effective low pressure sealing. They insert a primary seal element into the base seal and use the elastomeric energizer to provide even more effective low pressure sealing. This seal is an excellent choice where systems experience extremely low temperatures and leakage occurs until the system warms up. They’re used for both piston and rod seals. Premium U-Cups seal on both the inside and outside diameters. They seal by means of two flared, flexible lips in contact with the rod or cylinder wall. Dynamic contact surfaces should have a finish of 8 - 16 RMS.

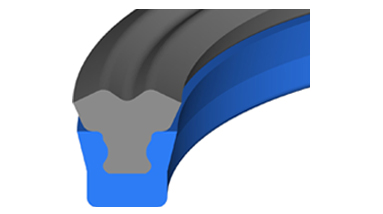

PREMIUM LOADED U-CUP

Premium Loaded U-Cup

Premium Loaded U-Cups are excellent for applications requiring low friction at extreme temperatures. More

PREMIUM LOADED DOUBLE LIP U-CUP

Premium Loaded Double Lip U-Cup

Heavy-duty rod seals feature improved extrusion resistance at higher pressures and larger clearance gaps. More

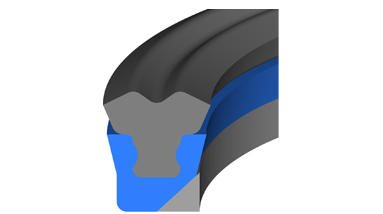

PREMIUM LOADED U-CUP WITH ANTI-EXTRUSION RING

Premium Loaded U-Cup with Anti-Extrusion Ring

Extrusion resistance at high pressures and large clearance gaps for low friction extreme temperature applications. More
