Back-up Split PTFE

BACK-UP SPLIT PTFE

Part Number: K325X36TBU

Single turn PTFE Back-up Rings help control O-Ring extrusion in high pressure applications. PTFE back-up rings are compatible with all hydraulic fluids since they are virtually chemically inert and can also be used in applications involving elevated operating temperature conditions. In addition, PTFE back-up rings can greatly improve O-Ring performance and extend service life, even if extrusion does not present a problem.

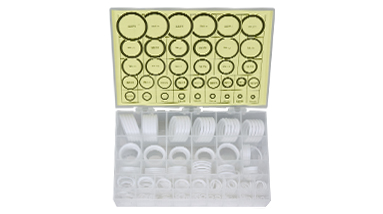

This 36-compartment kit contains 325 single turn back-up rings in 36 different MS28774 sizes. This style features a 22° scarf cut to facilitate installation. The material is 55 durometer (Shore D) PTFE. Each kit includes a contents identification card which lists the size and actual dimensions of each ring.

Sizes and quantities include:

15 each: 005, 006, 007, 008, 009, 010, 011, 012,
10 each: 013, 014, 015, 016, 017, 018
10 each: 110, 111, 112, 113, 114, 115, 116
  5 each: 117, 118, 119, 120, 121
  5 each: 210, 211, 212, 213, 214, 215, 216, 217, 218, 219
