Loaded U-Cup

LOADED U-CUP

Loaded U-Cups derive their name from their "U" shape and the elastomeric energizer. They provide more effective low pressure sealing and seal on both the inside and outside diameters. U-Cup seals are often used for piston or rod seals due to the small gland space they require. U-Cups are usually specified for low speed, low pressure environments. They seal by means of the flared, flexible lip in contact with the rod or cylinder wall. Dynamic contact surfaces should have a finish of 8 - 16 RMS.

SQUARE B LOADED U-CUP

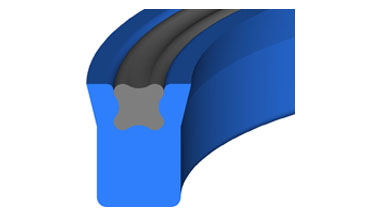

Square B Loaded U-Cup

These Square B seals with a urethane surface and low pressure energizer enjoy a long performance life. More

BACK-BEVELED LOADED U-CUP

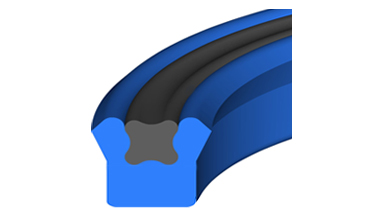

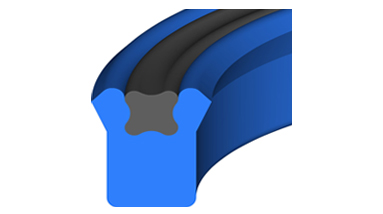

Back-Beveled Loaded U-Cup

Deep back-beveled loaded U-Cups are taller than Square B loaded U-Cups to increase resistance to deformation. More
